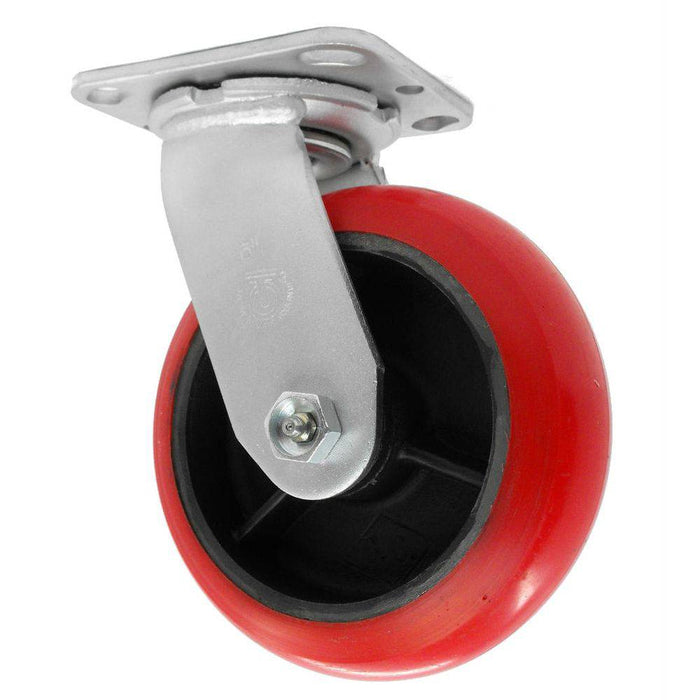

6" x 2" Polyflexon Cast Wheel Swivel Caster - 900 lbs. Capacity
6" x 2" Polyflexon Cast Wheel Swivel Caster - 900 lbs. Capacity
Product Overview
The unique flex compound used for the Polyflexon wheels offer a semi-cushioned ride, ideal for workshop or warehouse applications where small debris or thresholds are present. The rounded tread and sealed precision bearings provide low-friction swivel and roll.
Tread: Flex Compound Polyurethane Elastomer, Non-Marking, Chemically & mechanically bonded to Core This caster is listed with wheel diameter 6", tread width 2", load capacity 900 Lbs., tread type Flex Compound Polyurethane Elastomer, Non-Marking, Chemically & Mechanically Bonded To Core, and bearing type Roller Bearing.
Key Features
- Load Capacity: 900 Lbs.
- Wheel Diameter: 6"
- Tread Width: 2"
- Tread: Flex Compound Polyurethane Elastomer, Non-Marking, Chemically & Mechanically Bonded To Core
- Bearing: Roller Bearing
- Mounting Plate: 4" x 4-1/2"
Ideal For
Choose this product if you need:
- A caster matching the listed wheel specifications and 4" x 4-1/2" plate with 2-5/8" x 3-5/8" to 3" x 3" bolt-hole pattern
- Loads within the listed 900 Lbs rating
- Equipment using the listed 4" x 4-1/2" plate with 2-5/8" x 3-5/8" to 3" x 3" bolt-hole pattern
- Applications needing the listed Flex Compound Polyurethane Elastomer, Non-Marking, Chemically & Mechanically Bonded To Core wheel or tread
Not Ideal For
Not ideal when the load exceeds 900 Lbs, the equipment requires a wheel other than 6" diameter by 2" tread width, the mounting does not match the listed 4" x 4-1/2" plate with 2-5/8" x 3-5/8" to 3" x 3" bolt-hole pattern, or a brake or swivel lock is required but not listed.
Product Details
Review the product details below to confirm the wheel diameter, tread width, load capacity, wheel or tread material, bearing, mounting plate, and bolt-hole pattern match the caster required for your equipment.
Shared Product Details
| Brand | Durable Superior Casters |
| Wheel Diameter | 6" |
| Tread Width | 2" |
| Wheel Color | Red or Green |
| Load Capacity | 900 Lbs. |
| Overall Height | 7-1/2" |
| Bearing Type | Roller Bearing |
| Plate Size | 4" x 4-1/2" |
| Tread Type | Flex Compound Polyurethane Elastomer, Non-Marking, Chemically & Mechanically Bonded To Core |
| Core Type | Cast Iron |
| Swivel Radius | 4-9/16" |
| Bolt Hole Pattern | 2-5/8" x 3-5/8" to 3" x 3" |
| Bolt Hole Diameter | 3/8" |
| Durometer | Shore A 85 (+/-5) |
Available SKU Options
Compare the configuration details below and select the SKU that matches your equipment.
| SKU | Configuration Details |
| 27RP60JK0417YY | Four-Position Swivel Lock: Standard |

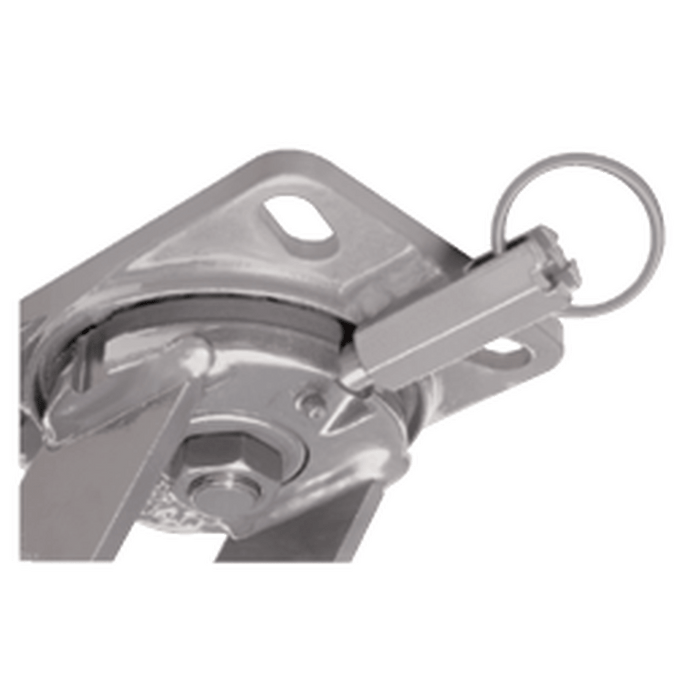

| 27RP60JK0417PY | Four-Position Swivel Lock: Add 4-Position Swivel Lock |
Frequently Asked Questions
What is this product used for?
Use it when you need a caster matching the listed wheel specifications and 4" x 4-1/2" plate with 2-5/8" x 3-5/8" to 3" x 3" bolt-hole pattern.
What should I check before ordering?
Confirm the wheel diameter, tread width, load capacity, mounting dimensions, and bearing or bore shown in Product Details against the equipment being fitted.
What bearing does it use?
The source lists Roller Bearing.
